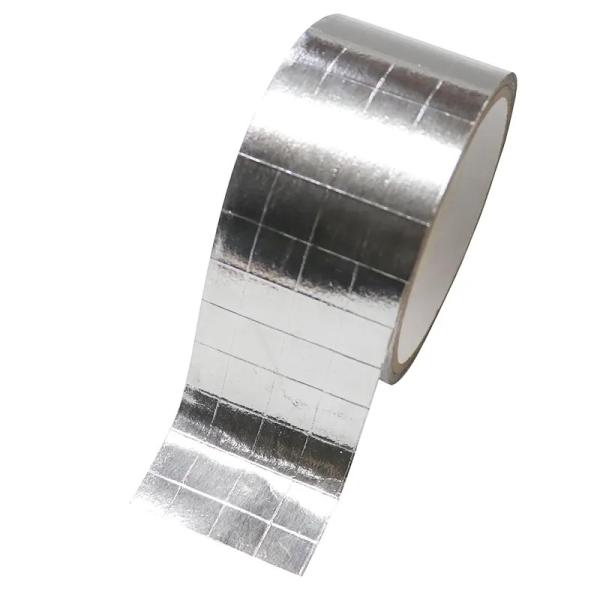

2-Way Reinforced Aluminum Foil Scrim Kraft Tape - AF7125B
Description:
2-way Foil-Scrim-Kraft facing laminated fiberglass blanket backing, combined with a transparent high performance solvent acrylic adhesive, protected by an easy-release silicone release paper.
Standard Products:
| Product code | Aluminum Foil Scrim Kraft Tape - AF7125B |
| Material | Aluminium Foil Scrim Kraft facing laminated fiberglass + solvent acrylic adhesive |
| Gule | High Performance Solvent Acrylic Adhesive |
| Cut Roll | 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4") |
| Log Roll | 1200mm x 45M / 50M |
| Jumbo Roll | 1200mm x 500M / 750M |
| Sample | Free, Freight on buyer |
Typical Physical Properties:
| PROPERTIES | METRIC | ENGLISH | TEST METHOD |
| Backing Thickness | 120 Micron | 4.8 Mil | PSTC-133 / ASTM D 3652 |
| Total Thickness | 170 Micron | 6.8 Mil | PSTC-133 / ASTM D 3652 |
| Adhesion to Steel | 20 N/25mm | 72 Oz./In. | PSTC-101 / ASTM D 3330 |
| Tack Rolling Ball | 15 cm | 6.0 In. | PSTC-6 / ASTM D 3121 |
| Tensile Strength | 120 N/25mm | 27.3 Lb/In | PSTC-131 / ASTM D 3759 |
| Elongation | 2.0 % | 2.0 % | PSTC-131 / ASTM D 3759 |
| Service Temperature | -30 ~ +80 °C | -22 ~ +176 °F | ------------ |
| Applying Temperature | +10 ~ 40 °C | +50 ~ +105 °F | ------------ |
Features:
• Provides excellent reflection of both heat and light.
• High quality adhesive with super strong adhesion and holding power offers reliable and durable
• Low moisture vapor transmission rate makes AF7125B an excellent vapor barrier.
• High temperature resistance
Applications:
Ideal for sealing joints/seams against moisture and vapor on foil jacketing insulation. Suitable for many other permanent sealing holding, splicing or masking applications requiring the protection offered by a foil backing.
Packaging & Shipping
Surface Preparation
It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied must be clean, dry, free of grease, oil or other contaminants.
Product Use
It is essential that the user evaluate the KintTape product to determine whether it is fit for a particular purpose and user’s method of application. Good results will be obtained when applied to a clean, dry surface with a suitable pressure on KintTape products between +10℃ ~ 40℃(+50°F ~ +105°F).
|
|
