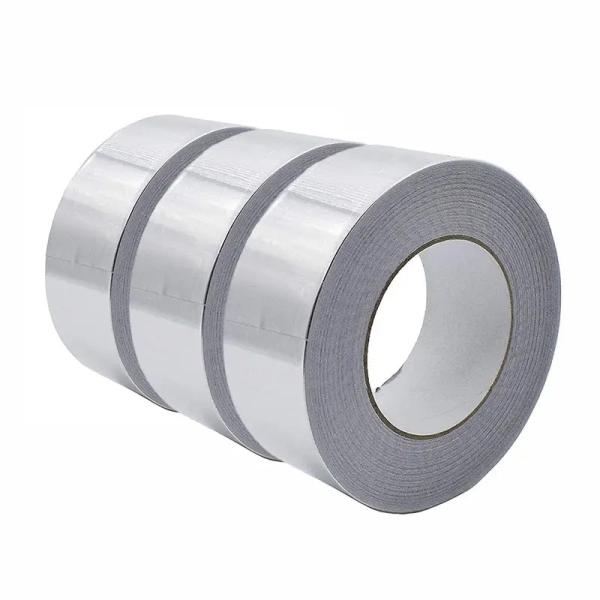

Aluminum Foil Tape Without Liner
Descriptions:
A nominal 30 micron(1.2mil) - 75micron(3mil) silicone release coated aluminum foil backing, combined with a high performance
synthetic rubber-resin adhesive.
Product form & Size available
| Cut Roll Width | 48/50mm(2’’), 60/63mm(2.5’’), 72/75mm(3’’), 96/100mm(4’’) |
| Log Roll | 1200mm x 45/50m |
| Jumbo Roll | 1200mm x 1500m/1600m |
| Paper core diameter | 76.2mm |
| Packing | As requirement |
| Special size | Can be customized |
| Free sample | Free,Freight on buyer |
| MOQ | 2000 Rolls |
Typical Physical Properties
| Aluminum Foil Tapes Without Liner Rubber-Resin Adhesive | |||||||
| Product Code | Backing | Adhesive | Thickness | Adhesive N/25mm | Tensile N/25mm | Elongation % | Service Temp. ℃ |
| AF3005WL | Foil 30μ | Rubber-Resin | 70 | 15 | 45 | 3.0 | -20 ~ +80 |
| AF4005WL | Foil 40μ | 80 | 55 | 3.0 | |||
| AF5005WL | Foil 50μ | 90 | 75 | 3.0 | |||
| AF7505WL | Foil 75μ | 125 | 100 | 5.0 | |||
| Aluminum Foil Tapes Without Liner Solvent Acrylic Adhesive | |||||||
| AF3025WL | Foil 30μ | Solvent Acrylic | 70 | 12 | 45 | 3.0 | -30 ~ +120 |
| AF4025WL | Foil 40μ | 80 | 55 | 3.0 | |||
| AF5025WL | Foil 50μ | 90 | 75 | 3.0 | |||
| AF7525WL | Foil 75μ | 125 | 100 | 5.0 | |||
| PTF2325WL | PET-Foil: 55μ | 95 | 120 | 20 | |||
Product Guide
| Aluminum Foil Tapes Without Liner Rubber-Resin Adhesive | ||
|---|---|---|
| Product Code | Description | Application |
| AF3005WL | Releasing Treated Foil: 30μ Rubber-Resin Adhesive | Commercial grade. self-wound,easy application. Good for HVAC sealing application and refrigerator industry. |
| AF4005WL | Releasing Treated Foil: 40μ Rubber-Resin Adhesive | High-grade self-wound Foil tape. Excellent for sealing joints and seams of Foil-faced insulation materials. Good for refrigerator industry, metal patching and sound dampening applications. |
| AF5005WL | Releasing Treated Foil: 50μ Rubber-Resin Adhesive | High-grade self-wound Foil tape. Excellent for sealing joints and seams of FSK-faced insulation materials. Good for refrigerator industry, metal patching and sound dampening applications. |
| AF7505WL | Releasing Treated Foil: 75μ Rubber-Resin Adhesive | Premium grade self-wound Foil tape. Excellent protecting for masking oprations in electroplating and paint stripping. Good at protecting cable splices, metal patching and sound dampening applications. |
| Aluminum Foil Tapes Without Liner Solvent Acrylic Adhesive | ||
| AF3025WL | Releasing Treated Foil: 30μ Solvent Acrylic | Commercial grade. self-wound,easy application. Good for HVAC sealing application and refrigerator industry. Excellent low temperature and high temperature resistance. |
| AF4025WL | Releasing Treated Foil: 40μ Solvent Acrylic | High-grade self-wound Foil tape. Excellent for sealing joints and seams of Foil-faced insulation materials. Good for refrigerator industry, metal patching and sound dampening applications. Excellent low temperature and high temperature resistance. |
| AF5025WL | Releasing Treated Foil: 50μ Solvent Acrylic | High-grade self-wound Foil tape. Excellent for sealing joints and seams of FSK-faced insulation materials. Good for refrigerator industry, metal patching and sound dampening applications. Excellent low temperature and high temperature resistance. |
| AF7525WL | Releasing Treated Foil: 75μ Solvent Acrylic | Premium grade self-wound Foil tape. Excellent protecting for masking oprations in electroplating and paint stripping. Good at protecting cable splices, metal patching and sound dampening applications. Excellent low temperature and high temperature resistance. |
| PTF2325WL | Releasing Treated PET-Foil: 55μ Solvent Acrylic | Premium grade self-wound PET-Foil tape. Excellent for fixing copper tube of Refrigerator, seaing solar-reflecting board's seams. |
Typical Applications:
HVAC industry for joining and sealing Foil-Scrim-Kraft Facing laminated fiberglass blanket/duct board joints and seams; joining and sealing flexible air duct seams and connections.
Generally used in thermal insulation materials industry/Building decoration engineering industry/Air-condition chiller plant industry/Refrigerator manufacturing industry/Integrating manufacturing industry/Electric/battery/communication cable manufacturing industry/Food/Medicine packing industry, etc.
May also be used for other industrial uses requiring a tape with these characteristics and benefits.
Feature & Benefits
• Aluminum backing provides excellent reflection of both heat and light.
• Aluminum Foil Tape Without Liner makes easy application
• High quality adhesive with super strong adhesive and holding power offers permanent sealing and bonding on
Foil-Scrim-Kraft Facing joints and seams sealing in HVAC ductwork application.
• Low moisture vapor transmission rate offers excellent sealing and patching performance.
• Excellent low temperature and high temperature resistance.
Packaging & Shipping
Surface Preparation
It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied must be clean, dry, free of grease, oil or other contaminants.
Product Use
It is essential that the user evaluate the KintTape product to determine whether it is fit for a particular purpose and user’s method of application. Good results will be obtained when applied to a clean, dry surface with a suitable pressure on KintTape products between +10℃ ~ 40℃(+50°F ~ +105°F).
|
|
