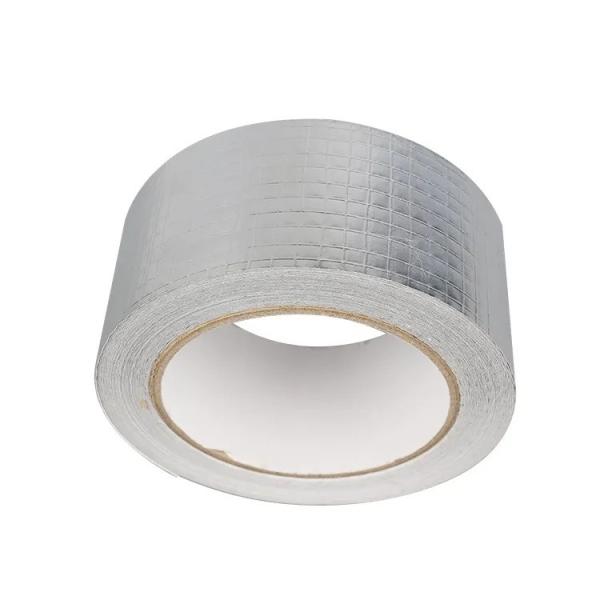

2-Way Reinforced Aluminum Foil Scrim Tape - FS1805B
Description:
FS1805B
2-way Foil-Scrim facing laminated fiberglass blanket backing(Foil: 18u / 2-way Scrim: 5x5mm), combined with a transparent high performance rubber-resin adhesive, protected by an easy-release silicone release paper.
Standard Products:
| Product code | Aluminum Foil Scrim Tape - FS1805B |
| Material | Aluminium Foil Scrim facing laminated fiberglass |
| Gule | High Performance Synthetic Rubber-Resin Adhesive |
| Cut Roll | 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4") |
| Log Roll | 1200mm x 45M / 50M |
| Jumbo Roll | 1200mm x 500M / 750M |
| Sample | Free, Freight on buyer |
Typical Physical Properties:
| PROPERTIES | METRIC | ENGLISH | TEST METHOD |
| Backing Thickness | 43 Micron | 1.7 Mil | PSTC-133 / ASTM D 3652 |
| Total Thickness | 83 Micron | 3.3 Mil | PSTC-133 / ASTM D 3652 |
| Adhesion to Steel | 20 N/25mm | 72 Oz./In. | PSTC-101 / ASTM D 3330 |
| Tack Rolling Ball | 20 cm | 6.0 In. | PSTC-6 / ASTM D 3121 |
| Tensile Strength | 100 N/25mm | 22.7 Lb/In | PSTC-131 / ASTM D 3759 |
| Elongation | %. | 3.0 | PSTC-131 / ASTM D 3759 |
| Service Temperature | -20 ~ +80 °C | -4 ~ +176 °F | ------------ |
| Applying Temperature | +10 ~ 40 °C | +50 ~ +105 °F | ------------ |
Features:
• Reflection of both heat and light.
• Strong viscosity
• Not easy to break
• Quality Assurance
Applications:
HVAC industry for joining and sealing Foil-Scrim Facing laminated fiberglass blanket / duct board / pipe section joints and seams; joining and sealing flexible air duct seams and connections.
May also be used for other industrial uses requiring a tape with these characteristics and benefits.
Packaging & Shipping
Surface Preparation
It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied must be clean, dry, free of grease, oil or other contaminants.
Product Use
It is essential that the user evaluate the KintTape product to determine whether it is fit for a particular purpose and user’s method of application. Good results will be obtained when applied to a clean, dry surface with a suitable pressure on KintTape products between +10℃ ~ 40℃(+50°F ~ +105°F).
|
|
